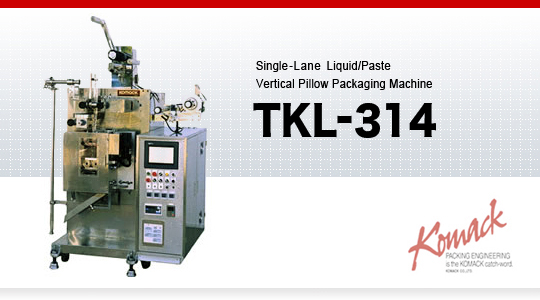

TKL-314
Single-Lane Liquid & Paste Vertical Pillow Packaging Machine
TKL-314 is the continuously driving packaging machine for stick packages with the single line heat roller. Even though it is a single type, the continuous driving increases the rotating speed compared to other stick packaging machines, and this machine is highly valued for its economic efficiency. It is equipped with the mechanisms to operate in accordance with the packaging conditions required by each product specifications. Among such standard mechanisms are; the photoelectric controlled pattern matching or endless operation, change in pitch, adjustment of the notch depth and fine-tuning of cut position and angle. Also, the pump can be selected from a wide range of pumps for consecutive and intermittent discharge.
Standard Specifications
| Filling Materia | Liquid & paste | |
| Packaging Form | Vertical pillow type | |
| Packaging Capacity | 20-100 bags/min. | |
| Filling Volume | 1-80 cc | |
| * The range of the filling volume may vary by the gproperty of the filling materialh and the gfeeding deviceh. | ||
| Bag Size | Width | 50 mm (Max.) |
| Length | 60-200 mm | |
| Number of Rows of Roll | 3 | |
| Film | Width | 120 mm (Max.) |
| Dimension | 400 mm (Max.) | |
| Feeding Speed | 10 m /min. (Max.) | |
| * Actual filling speed may vary by the product pitch, the film material and the property of the filling material. | ||
| Power Consumption | Main Motors | 1.5 KW (Total) |
| Heater | Single phase 200 V, 1KW ~ 4 | |
| Total Power | 5.5 KW | |
| Dimensions of Machine | W 1,150 ~ L 1,050 ~ H 1,900 mm | |
| Weight of Machine | Approx. 600 kg | |
(Note)
1. The packaging capacity, filling volume and the package size may vary by the selected options. Please contact us for details.
2. The range of the length of the bag may vary by the width of the side seal.
3. The actual filling speed may vary by the film material and the property of the filling material.
4. The range of the filling volume is determined by the gviscosity of the filling materialh and the gfeeding pumph. Please feel free to consult with us.
5. The total power may vary by the specifications of the pump and other optional equipments.
