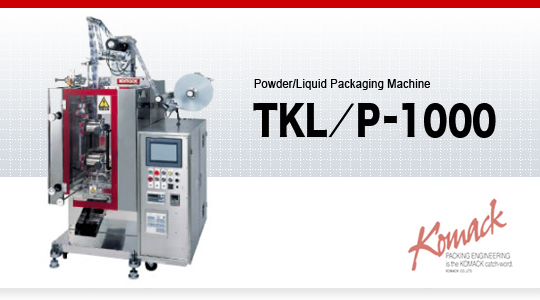

TKL/P-1000
TKL/P-1000 enables the double packaging of liquid and powder products. It offers the mechanisms to operate in accordance with the packaging conditions based on the specifications of each product, for instance, the photoelectric controlled pattern matching or endless operation, change in pitch, adjustment of the notch depth and fine-tuning of cut position and angle. Also, the pump can be selected from a wide range of pumps for consecutive and intermittent discharge. Other optional features are omitted as much as possible to achieve the low cost.
Standard Specifications
| Filling Material | Liquid, paste | |
| Packaging Form | 3-side sealing, 4-side sealing (Single/Double) | |
| Packaging Capacity | 20-100 bags/min. | |
| Filling Volume | 1-100 cc | |
| * The range of the filling volume is determined by the gproperty of the filling materialh and the gfeeding deviceh. | ||
| Bag Size | Width | 110 mm (Max.) |
| Length | 60-200 mm | |
| Number of Rows of Roll | 3 | |
| Film | Width | 220 mm (Max.) |
| Diameter | 400 mm (Max.) | |
| Feeding Speed | 15 m /min. (Max.) | |
| * Actual filling speed may vary by the product pitch, the film material and the property of the filling material. | ||
| Power Consumption | Main Motors | 2.0 KW (Total) |
| Heaters | Single phase 200 V, 1KW ~ 4 | |
| Total Power | 6.0 KW | |
(Note)
1. The packaging capacity, filling volume and the package size may vary by the selected options. Please contact us for details.
2. The range of the bag length may vary by the width of the side sealing.
3. The actual filling speed may vary by the film material and the property of the filling material.
4. The range of the filling volume is determined by the gviscosity of the fillingh and the gfeeding pumph. Please feel free to consult with us.
5. The total power may vary by the specifications of the pump and other optional equipments.
